Diamond saw blades

YC-HAD17

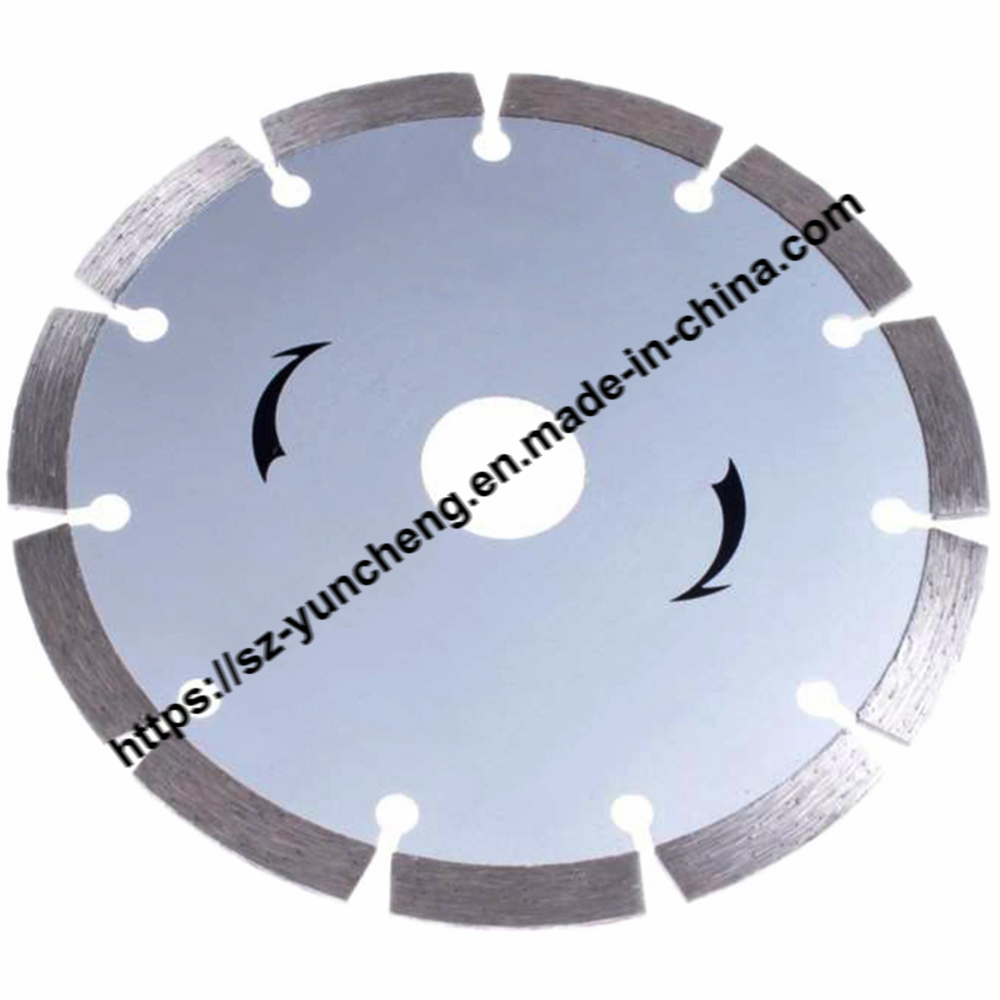

High quality sintered diamond segmented saw blade, Granite cutting diamond saw blade with competitive price

Release Time:2022-12-19
Browse:322
Details

High quality sintered diamond segmented saw blade, is used for cutting below materials.

Marble,
Granite,
Brick,
Asphalt,
Concrete,
General purpose,
Building materials.

Parameters:

Outer diameter

Arbor

Segment dimensions

Segment numbers

6" / 150mm

20/22.23mm

2.2 x 7.0 x 33.5mm

12

..........................

...................

.........................................

...........................


They are characteristic of fast cutting speed, smooth cutting and long life.

Any further requirements for it or any enquiry for other size specifications, please feel free to contact us.

As usual, we produce outer diameter range from Φ105mm to Φ350mm at the factory,e.g.,

Outer diameter (D)

Arbor (d)

Segment dimensions (mm)

Segment numbers


Inches

Metric(mm)

mm

Thickness x height x length

(N)


4”

105

16/20/22.23

 1.8      7.0     35

8


4.3”

110

16/20/22.23

 1.9      7.0     32.3

9


4.5”

115

20/22.23

 1.9      7.0     38.3

8


4.5”

115

20/22.23

 2.0      7.0     35

8


4.5”

115

20/22.23

 2.2      7.0     35

8


5”

125

20/22.23

 2.0      7.0     37.5

9


5”

125

20/22.23

 2.2      7.0     35

9


6”

150

20/22.23

 2.2      7.0     33.5

12


7”

180

22.23/25.4/30

 2.2      7.0     35

14


7”

180

22.23/25.4/30

 2.4      7.0     35

14


8”

200

22.23/25.4/30

 2.4      7.0     39.2

14


9”

230

22.23/25.4/30

 2.6      7.5     34.4

18


9”

230

22.23/25.4/30

 2.5      7.0     35

18


10”

250

22.23/25.4/30

 2.8      8.0     37

18


12”

300

22.23/25.4/30/50

 3.4      8.0     35

22


14”

350

22.23/25.4/30/50

 3.4      8.0     40

24


.................................................................................................................................


Other size specification upon request.




Packaging: double blister & paper card, and then master carton.
Remarks:
Washers for blade in the blister packaging,
For (d) 22.23mm type, we will equip with 22.23-20, 22.23-16, 22.23-12.70 washers.

(Other sizes upon request, made-to-order)
